The RD2 is a stable mirror mount with an integrated base. It can be used for optics up to two inch.
Features:
- Very Stable Mirror Mount
- Available as "right hand" and "left hand" version.
- Different front-plates available(e.g. 1/2", 1",2")
- With M6 or M8 thread
- Standard Screw: Fine thread screws Model 5 with 250 μm/turn
|

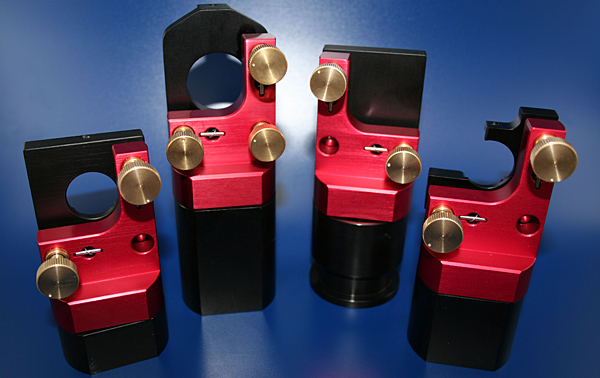

![RD2 Mirror Mount](/cache/images/stories/RDL/MirrorMounts/mirror_rd2_picture_200x127-equal.jpg) RD2 / RD2-HS |
Screw Options:
Fine thread screws Model 5:
- with 250 μm/turn (100 TPI)
- with 150 μm/turn (170 TPI)
- with 100 μm/turn (250 TPI)
Micrometer screws:
- with 500 μm/turn (50 TPI)
- with 250 μm/turn (100 TPI)
- with 100 μm/turn (250 TPI)

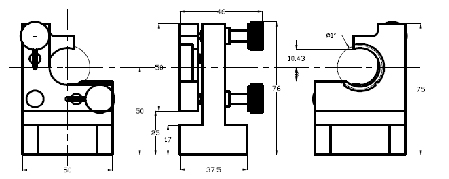

![Rd2](/images/stories/RDL/MirrorMounts/drawing_Rd2.jpg)
