Lens Mounts

Radiant Dyes offers lens mounts in several sizes and types. From fixed lens mounts to variable lens mounts to have the possibility to adjust the lens in the xyz plane.

  • Ø 12 and Ø 12,7mm lenses
  • Ø 18 and Ø 20mm lenses
  • Ø 25 and Ø 25,4mm lenses
  • Ø 30 mm lenses
  • Ø 40 mm lenses
  • Ø 50 mm lenses
  • Ø 75 mm lenses

 Lens Mounts

RD-LM

Features:

  • Fixed Lens Mount
  • With 3 point bases
  • Available for several lens sizes
  • Mountable on a M4 post

Available for the following lens sizes:

  • Ø 12 mm and Ø 0.5"
  • Ø 18 mm and Ø 20 mm
  • Ø 25 mm and Ø 1"
  • Ø 30 mm
  • Ø 40 mm
  • Ø 50 mm and Ø 2"
  • Ø 75 mm
 RD-LM
 Lens Mounts

RD-LM-WR

Features:

  • Fixed Lens Mount
  • With internal thread
  • One retaining ring included
  • Mountable on a M4 post

Available for the following lens sizes:

  • Ø 0.5"
  • Ø 1"
  • Ø 2"
 RD-LM-WR
 Lens Mounts

RD-VL

Features:

  • Stable Lens Mount
  • 2 screws & 1 thread pin
  • Several inserts available
  • Option: with 150 μm fine thread screws
  • Adjustment line in x-y direction: 8 mm

This variable lens mounting consists of an adjustment body and a 1" lens insert (on request also 0.5"). The great advantage of the variable lens mounting is the possibility to adjust the lens in the xy-plane. The lens mounting is delivered with thread pin.

RD-VL
 Lens Mounts

RD-VL-MNI

Inserts for RD-VL-MNI:

  • Ø 12 mm and Ø 1/2" lenses
  • Ø 18 mm and Ø 20 mm lenses
  • Ø 25 mm and Ø 1" lenses

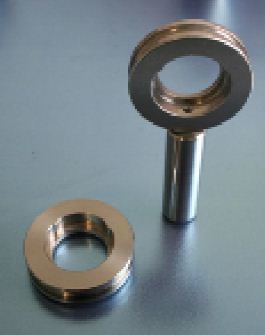

RD-VL-Inserts
 Lens Mounts

RD-VL-MDI

Inserts for RD-VL-MDI:

  • Ø 30 mm lenses
  • Ø 40 mm lenses

 Lens Mounts

RD-VL-MXI

Inserts for RD-VL-MXI:

  • Ø 50 mm lenses
  • Ø 75 mm lenses

 Lens Mounts

Lens Tube Systems

The Radiant Dyes Lens Tube System (RD-LT) is an easy combinable system to built up complex optical sytems. The Lens Tubes are available with the diameters 0.5" and 1". The system is compatible with the Radiant Dyes Lens Mounts (RD-LM-WR) and also compatible to other manufacturing companies.

RD1-GP RD2-GP
RD1-HA RD2-HA

 Lens Tube Systems
