Posts & Post holders

Radiant Dyes offers a wide range of optomechanical components such as posts, post holders, pedestals and holding forks.

  • Compatible Post Holders and posts
  • Holding Forks
  • Pedestals
  • Height adjustable pedestals
  • Height adapters


Download PDF

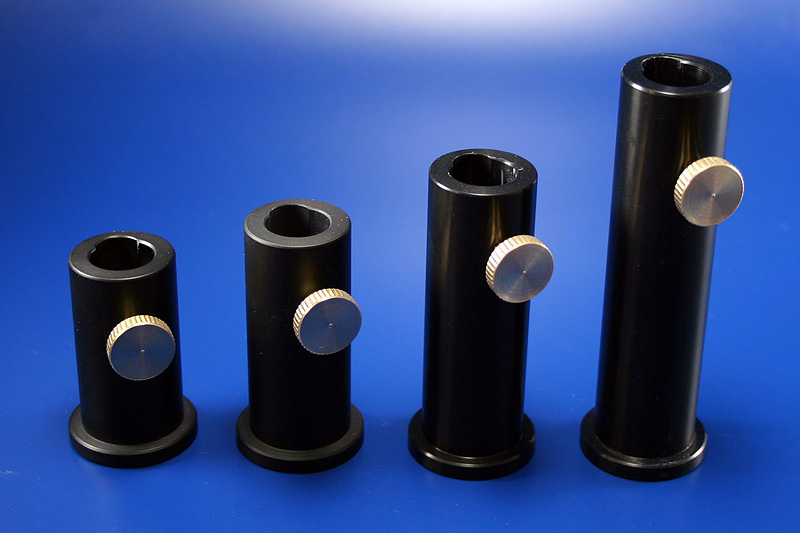

Post Holder RDS (including base)

The RDS-post holders (including base) are suitable for post dimensions from 11 to 15 mm diameter.

Very stable through a precise three-point-support. They are compatible to posts and post holders on the market.

Clearence hole (100% of the height is usable)
Magnetic base (for fast mounting)

For further technical details, please refer to our PDF Document.

RDS
Download PDF

Read more: Post Holder RDS (including base)

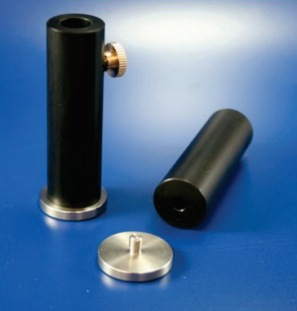

Post Holder RDS-OF (without Base)

RDS-OF-...

  • Post Holder without base
  • M6 thread on the bottom
  • Suitable for post dimensions from 11 to 15 mm diameter

RDS-F

  • Base for RDS-OF
  • Height 4,5 mm
  • With M6 thread

For further technical details, please refer to our PDF Document.

RDS-OFDownload PDF

Mounting Bases for Post Holders and Pedestals

RD-MB-1 (58 mm x 25 mm x 10 mm)
RD-MB-2 (76 mm x 26 mm x 10 mm)
RD-MBDownload PDF

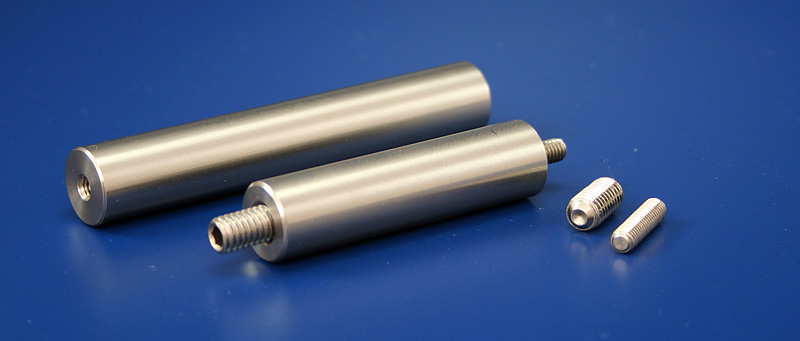

Posts RD-GS

  • Stainless Steel Posts
  • Posts fit to all Post Holders
  • Diameters: 0,5", 13mm and 15mm
  • Standard M4 inside threads on the one side and M6 on the other side
  • One grub screw (M4) including

For further technical details, please refer to our PDF Document.

RD-GS
Download PDF

Read more: Posts RD-GS

Post Holder Connector

RD-PHC

  • 90° connection between two posts
RD-PHC
RD-PHC Mounting option
Download PDF

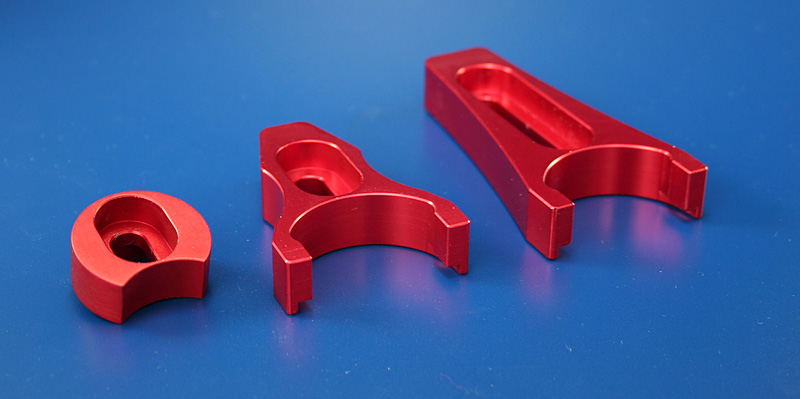

Holding Forks RDK-1

RDK-1 Holding Fork, flexible and stable fixing of all RDS, RDS-G and RDS-OG post holders and pedestals through precise three-point-support.

Compatible to other pedestals on the market.

  • RDK-1 mini
  • RDK-1 midi
  • RDK-1 maxi
HoldingForksRed
Download PDF

Read more: Holding Forks RDK-1

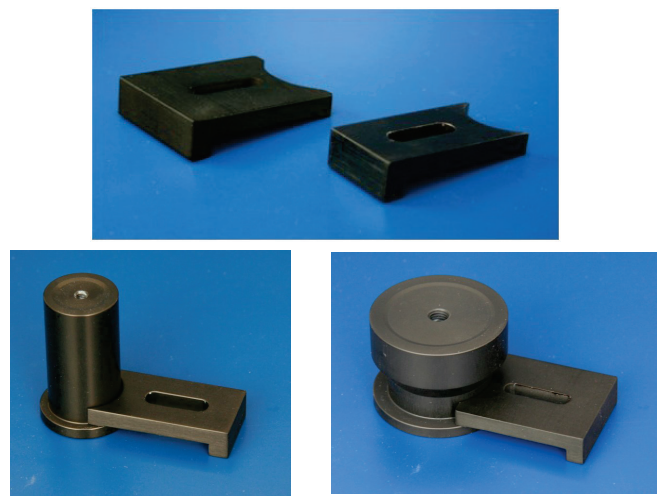

Holding Forks RDK-2

RDK-2 Holding Fork, flexible and stable fixing of RDS-G pedestals.

For RDS-G Pedestals: RDK-2 midi (Ø 25mm)

For RDS-G-B Pedestals: RDK-2 maxi (Ø 51mm)



RDK-2Download PDF

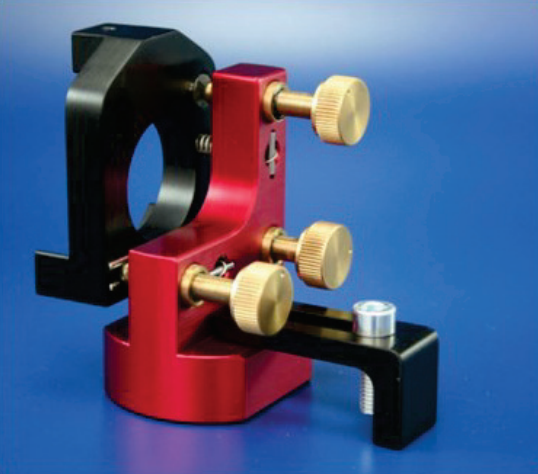

Clamping Forks RD-PH

RD-PH clamping fork, stable fixing of our RD1 and RD2 Mirror Mounts:

  • RD-PH-1 (38 mm x 16 mm x 9 mm)
  • RD-PH-2 (50 mm x 19 mm x 17 mm)
  • RD-PH-3 (50 mm x 19 mm x 23 mm) for RD2
  • RD-PH-4 (50 mm x 12 mm x 8 mm) for RD1



RD-PH
RD-PH Mounting optionDownload PDF

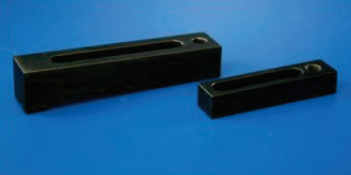

Table Clamps RD-TC

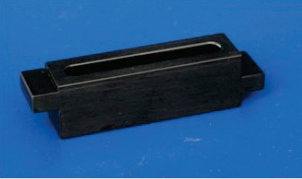

RD-TC-B/S/D Table Clamp to fix several optomechanics on the table. RD-TC-B/S
RD-TC-D
Download PDF

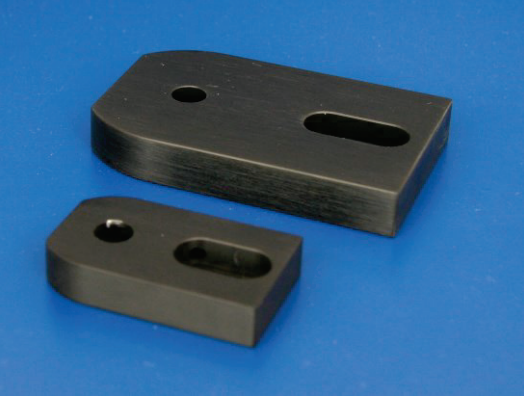

Base Plates and Height Adapter for RD1 and RD2

Base Plate

  • for RD1 Mirror Mounts: RD1-GP
  • for RD2 Mirror Mounts: RD2-GP

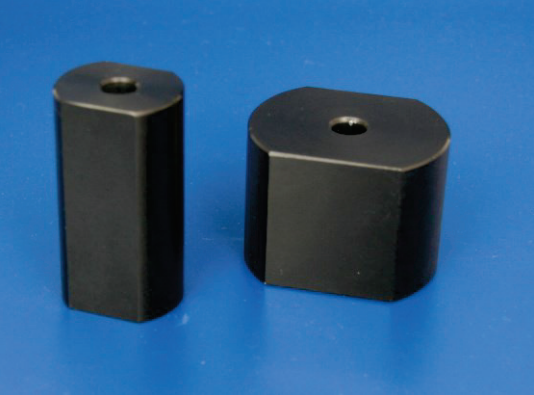

Height Adapter

  • for RD1 Mirror Mounts: RD1-HA1 - beam height 50mm
  • for RD2 Mirror Mounts: RD2-HA1 - beam height 75mm
  • for RD2 Mirror Mounts: RD2-HA2 - beam height 100mm

The height are always total height: Beam height = base plate + height adapter + mirror mount

RD1-GP RD2-GP
RD1-HA RD2-HA
Download PDF

Base Plates & Height Adapters for MNI, MNI-HS, MDI, MDI-H(S), MXI

MNI Base plate:

  • Available with long hole in longitudinal direction or with long holes in crosswise direction

MNI Height Adapter:

  • for 50mm beam height
  • for 75mm beam height

MDI Base plate:

  • Available with long hole in longitudinal direction
  • Available with long holes in crosswise direction

MDI Height Adapters:

  • for 50mm beam height
  • for 75mm beam height

MXI Base plate:

  • Available with long hole in longitudinal direction
  • Available with long hole in crosswise direction

MXI Height Adapters:

  • for 75 mm beam height
  • for 100 mm beam height

The height are always total height: Beam height = base plate + height adapter + mirror mount

Download PDF

RDS-MNI

  • Stainless steel pedestal
  • Diameter 25.4 mm (Ø 1")
  • The RDS-MNI system fits to our MNI Mirror Mounts
  • Can be used on both sides
  • One side M4, other side M6 thread

Pedestal RDS-MNI-P:

  • RDS-MNI-P-25 : 25mm size
  • RDS-MNI-P-50 : 50mm size
  • RDS-MNI-P-75 : 75mm size

 Other sizes on request

Holding Fork:

  • RDS-MNI-HF-S (small)
  • RDS-MNI-HF-M (medium)



RDS-MNI
Download PDF

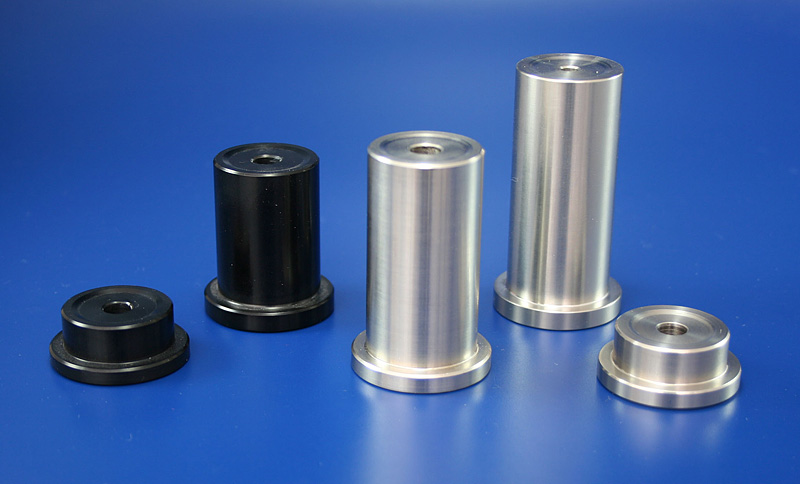

RDS-OG

  • Diameter 25.4 mm
  • Pedestal with inner lowering for M4, M6 or M8 screws
  • Available in aluminium, anodized aluminium or stainless steel
  • Lengths: from 12.7 mm (0,5") up to 152.4 mm (6")

For a detailed list of all availble lenghts, please refer to our PDF Document.

RDS-OG
Download PDF

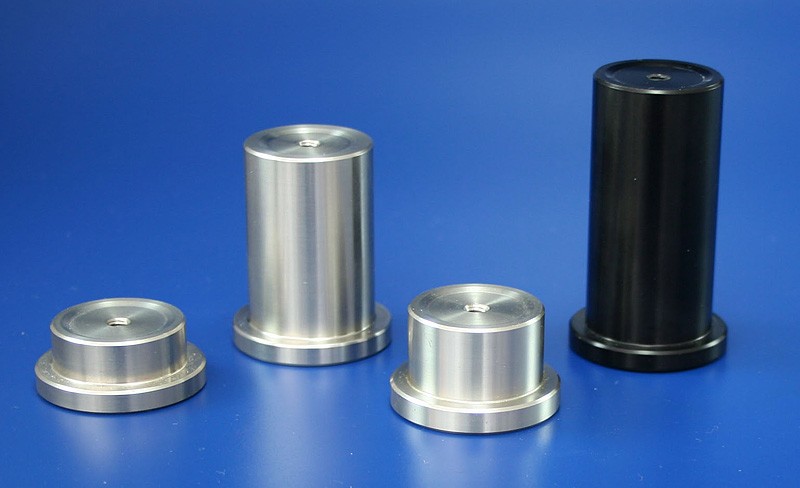

RDS-G

  • Diameter 25.4 mm
  • Pedestal with M4 (standard)
  • Also available with M6 thread
  • Available in aluminium, anodized aluminium or stainless steel
  • Lengths: from 0,5" up to 6"

For a detailed list of all availble lenghts, please refer to our PDF Document.

RDS-G
Download PDF

Read more: RDS-G

RDS-G-M

  • Diameter 31.5 mm
  • Pedestal with M4 (standard) or M6 thread on top
  • Available in aluminium, anodized aluminium or stainless steel
  • Sizes: from 25 mm to 100 mm

For a detailed list of all availble sizes, please refer to our PDF Document.

RDS-G-MDownload PDF

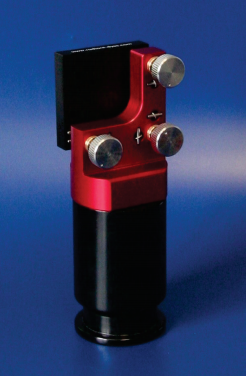

RDS-G-B

  • Diameter 51 mm
  • Very stable pedestal with M4, M6 or M8 thread on top
  • Available in aluminium, anodized aluminium or stainless steel
  • Fits perfectly for our RD2 mirror mounts
  • Other sizes on request
RDS-G-BDownload PDF

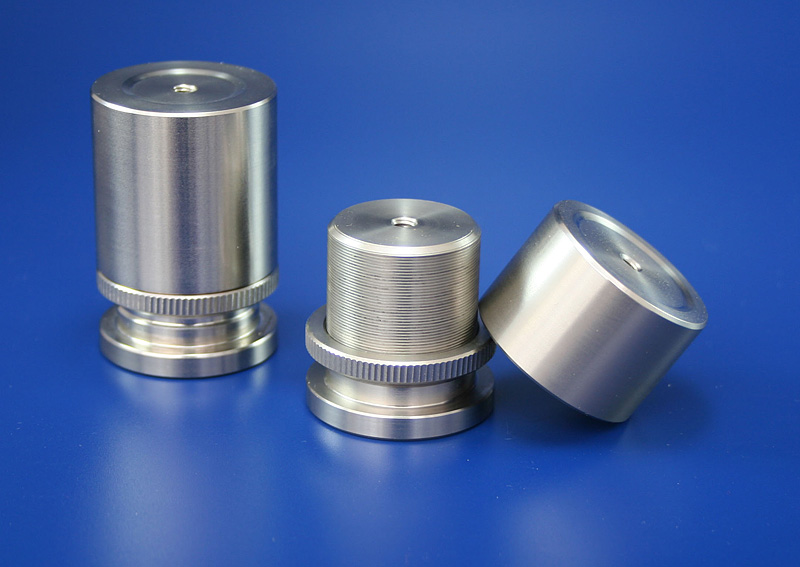

RDS-HS

  • Height adjustable pedestals
  • Top side M4, bottom side M6 thread (standard)
  • Easy to use
  • Precise and ultra-stable design

For a detailed list of all availble sizes, please refer to our PDF Document.

RDS-HS
Download PDF
