High stable Mirror Mounts

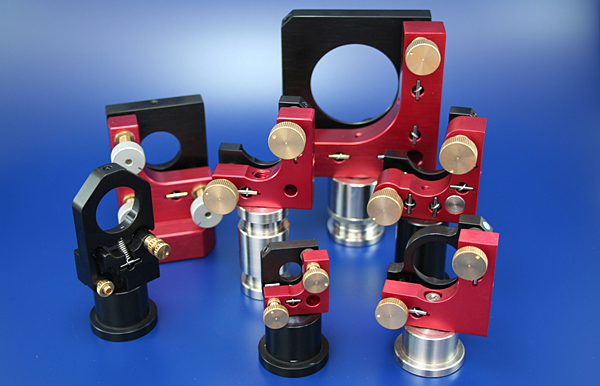

Radiant Dyes offers high stable mirror mounts, which have a thicker body plate, four springs and s stainless steel insert to provide a long-term stability.

Mirror Mounts

Download PDF

MNI-HS

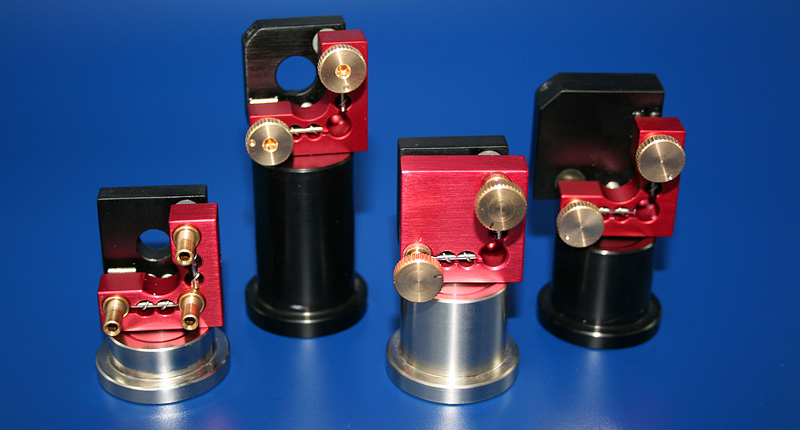

The MNI-H is the high stable version of the MNI mirror mount. The MNI-H can be used for applications where a high stability is necessary.

Features:

  • Small high stable Mirror Mount
  • 4 springs
  • Open or closed body plate
  • Different front-plates available
  • Stainless steel insert for stabilisation
  • M4 thread
  • #8-32 thread available on request
MNI-H
Download PDF

Read more: MNI-HS

MDI-HS

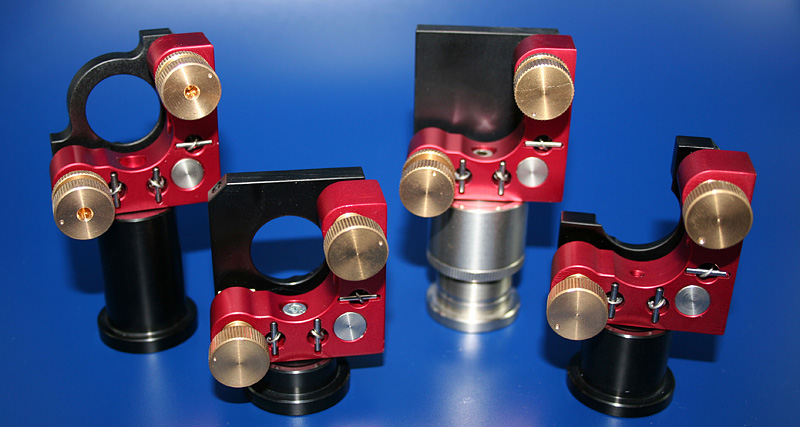

The MDI-HS is the high stable version of the MDI mirror mount. The MDI-HS can be used for applications where a high stability is necessary.

Features:

  • High-stable Mirror Mount
  • 4 springs
  • Stainless steel insert for stabilisation
  • Thicker open body plate
  • Different front-plates available
  • M6 thread with M4 inner lowering (standard)
  • M4 or #8-32 or ¼"-20 thread available on request

New front plates 2012
*new front plates avaible*
Download PDF

MDI-HS
Download PDF

Read more: MDI-HS

MDI-H

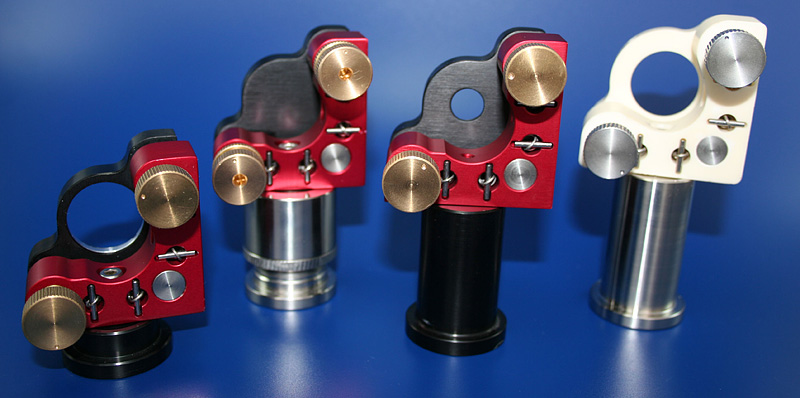

The MDI-H is the most stable mirror mount in our product range. The optics are fixed by a retaining ring instead of a set screw.

Features:

  • High-stable Mirror Mount
  • Standard MDI-H with axial mounting ring for distortion free wavefront
  • 4 springs
  • Stainless steel insert for stabilisation
  • Thicker open body plate
  • Thicker front plates
  • Different front-plates available
  • M6 thread with M4 inner lowering (standard)
  • M4 or #8-32 or ¼"-20 thread available on request
MDI-H
Download PDF

Read more: MDI-H

MXI

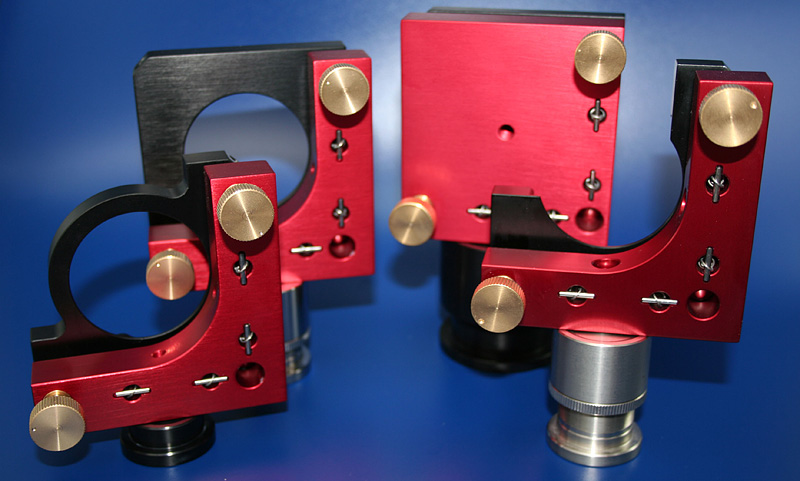

The MXI mirror mount is our standard mount for two inch optics. Due four strong springs this mount is high stable.

Features:

  • High Stable Mirror Mount
  • 4 springs
  • Thicker back plate
  • Different front-plates available
  • M6 thread with M4 inner lowering (standard)
  • M4 or #8-32 or ¼"-20 thread available on request
MXI
Download PDF

Read more: MXI

RD1-HS

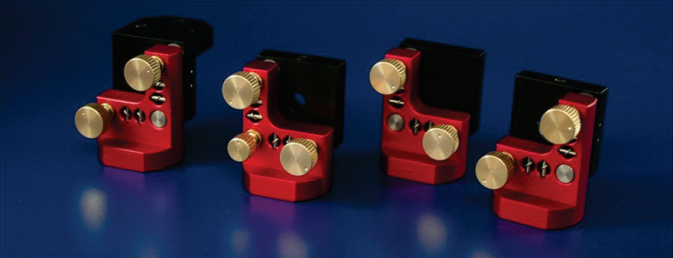

The RD1-HS is the high stable version of the RD1 mirror mount. The RD1-HS can be used for applications where a high stability is necessary.

Features:

  • High stable mirror mount
  • Available as "right hand" and "left hand" version
  • 4 springs
  • Stainless steel insert for stabilization
  • Different front plates available
  • With M6 thread (standard)
  • M4 and M8 thread are also available
  • #8-32 or #1/4-20 thread available on request

Screw Options:

Fine thread screws Model 2:

  • with 150 µm/turn (170 TPI)
  • with 100 µm/turn (250 TPI)

Micrometer screws:

  • 500 µm/turn (50 TPI)
  • 250 µm/turn (100 TPI)
  • 100 µm/turn (250 TPI)

For further technical details, please refer to our PDF Document.

RD1-HS
Download PDF

RD2-HS

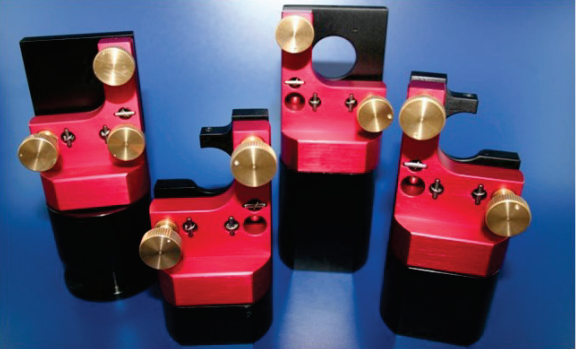

The RD2-HS is the high stable version of the RD1 mirror mount. The RD2-HS can be used for applications where a high stability is necessary.

Features:

  • High stable mirror mount
  • Available as "right hand" and "left hand" version
  • 4 springs
  • Stainless steel insert for stabilization
  • Different front plates available
  • With M8 thread (standard)
  • M6 thread is also available
  • #1/4-20 thread available on request

Screw Options:

Fine thread screws Model 5:

  • with 250 µm/turn
  • with 150 µm/turn (170 TPI)
  • with 100 µm/turn (250 TPI)

Micrometer screws:

  • 500 µm/turn (50 TPI)
  • 250 µm/turn (100 TPI)
  • 100 µm/turn (250 TPI)

For further technical details, please refer to our PDF Document.

RD2-HSDownload PDF
