MRO

These mirror holders are manufactured of special steel. They allow the assembly of a rigid resonator in a very small housing.

Features:

  • MRO-UL
  • Front plate 20 x 15 mm
  • MRO-ST-TR
  • Beam splitter and trans adjustment
  • Front plate 20 x 15 mm
  • With 10 mm notch
  • Other versions on request.

Read more: MRO

MNI

The MNI mount is a very compact mirror mount which is ideal for applications with low space.

It can be used for optics up to one inch.

Features:

  • Small stable Mirror Mounts
  • Open and Closed body plate
  • Different Front Plates available (e.g. 1/2", 1")
  • M4 or #8-32 thread available on request

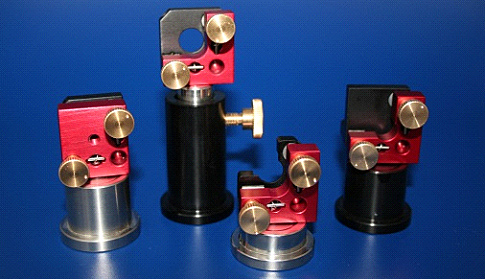

MNI Mirror Mount
Download PDF

Read more: MNI

Easy MDI

The Easy MDI is a low cost version of the MDI mirror mount. But the Easy MDI also guarantees a precise and repeatable adjustment for one inch optics.

Features:

  • Precisely adjustable
  • Low price

The difference to the original MDI:

  • no carbide spikes
  • smaller back plate
  • without thread but with lowering for M4 screws
  • only available with 2 screws with 250 µm/turn (100 TPI)

Easy MDI
Download PDF





Read more: Easy MDI

MDI

The MDI is our most popular mirror mount. The mount is available with different front plates (from closed up to two inch) and two or three screws. It is our standard mirror mount which can be used for most applications in the lab.

Features:

  • Stable Mirror Mount
  • Open or closed body plate
  • Different front-plates available
  • M6 thread with M4 inner lowering (standard)
  • M4 or M8 thread available on request
  • #8-32 or ¼"-20 thread available on request

New front plates 2012
*new front plates avaible*
Download PDF

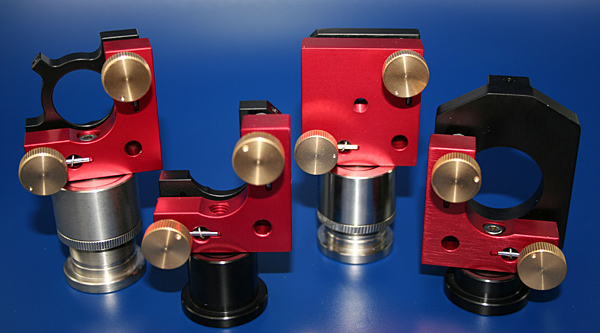

MDI Mirror Mound
Download PDF



Read more: MDI

RD1

The RD1 is a small stable mirror mount with an integrated base.

Features:

  • Very Stable Mirror Mount
  • Available in "right hand" and "left hand"
  • Different front-plates available (e.g. 1/2", 1")
  • With M8, M6 or M4 thread
  • Standard Screw: Fine thread screws Model 2 with 250 μm/turn
RD1 Mirror Mount
Download PDF

Read more: RD1

RD2

The RD2 is a stable mirror mount with an integrated base. It can be used for optics up to two inch.

Features:

  • Very Stable Mirror Mount
  • Available as "right hand" and "left hand" version.
  • Different front-plates available(e.g. 1/2", 1",2")
  • With M6 or M8 thread
  • Standard Screw: Fine thread screws Model 5 with 250 μm/turn
RD2 Mirror Mount
Download PDF

Read more: RD2

FineAdjustment Venus

The Venus series primarily intended for 0,5" optical devices.
  • 170 TPI fine tuning adjusters
  • M4.5 adjusters with hexagon socket
  • Mounting holes M4 counter bore
  • Powerful springs for excellent performance
  • Body in anodised aluminium - BP blue, FP black
FineAdjustment Venus
Download PDF

FineAdjustment Earth

The Earth series is primarily intended for 1" optical devices
  • 170 TPI fine tuning adjusters
  • M8 adjusters with hexagon socket
  • Mounting holes M4 counter bore and M6
  • 4 powerful springs for excellent performance
  • Body in anodised aluminium - BP blue, FP black
FineAdjustment Earth
Download PDF

FineAdjustment Mars

This series offers a stable mirror mounting for larger mirrors up to 2"
  • 170 TPI fine tuning adjusters
  • M8 adjusters with hexagon socket
  • Mounting holes M6 counter bore
  • 4 powerful springs for excellent performance
  • Body in anodised aluminium - BP blue, FP black
FineAdjustment Mars
Download PDF
