MNI

The MNI mount is a very compact mirror mount which is ideal for applications with low space.

It can be used for optics up to one inch.

Features:

  • Small stable Mirror Mounts
  • Open and Closed body plate
  • Different Front Plates available (e.g. 1/2", 1")
  • M4 or #8-32 thread available on request
  • Standard Screw: Fine Thread Screws 150µm/turn

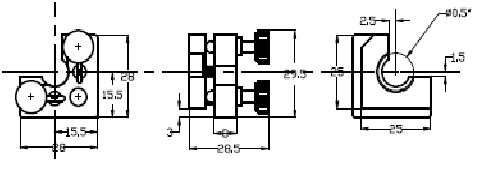

MNI Mirror Mount
Download PDF

Screw Options:

  • Standard:Fine Thread Screws 150µm/turn
  • Micrometer Screws with 500µm/turn
  • Micrometer Screws with 250µm/turn
  • Micrometer Screws with 100µm/turn

MNI



Back plates options:


Front plate options:



Fine thread screw options:

Thread options:

€51.00
