MDI-HS

The MDI-HS is the high stable version of the MDI mirror mount. The MDI-HS can be used for applications where a high stability is necessary.

Features:

  • High-stable Mirror Mount
  • 4 springs
  • Stainless steel insert for stabilisation
  • Thicker open body plate
  • Different front-plates available (e.g. ½", 1", 1,5")
  • M6 thread with M4 inner lowering (standard)
  • M4 or #8-32 or ¼"-20 thread available on request

New front plates 2012
*new front plates avaible*
Download PDF

MDI-HS
Download PDF

Screw Options:

  • Standard:
    Fine thread screw Model 4S with 250 μm/tur
  • Option:
    Fine thread screw Model 4S with 150 μm/turn
    Micrometer screws with 500 μm/turn
    Micrometer screws with 250 μm/turn
    Micrometer screws with 100 μm/turn

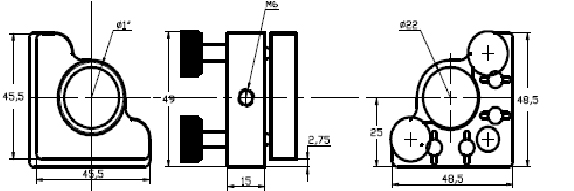

drawing MDI-HS



Back plates options:


Front plates options:




Fine thread screw options:

Thread options:

€89.00
