MNI-HS

The MNI-H is the high stable version of the MNI mirror mount. The MNI-H can be used for applications where a high stability is necessary.

Features:

  • Small high stable Mirror Mount
  • 4 springs
  • Open or closed body plate
  • Different front-plates available
  • Stainless steel insert for stabilisation
  • M4 thread
  • #8-32 thread available on request
MNI-H
Download PDF

Screw Options:

Fine thread screws Model 1:

  • with 150 μm/turn (170 TPI)
  • with 100 μm/turn (250 TPI)

Micrometer screws:

  • with 500 μm/turn (50 TPI)
  • with 250 μm/turn (100 TPI)
  • with 100 μm/turn (250 TPI)

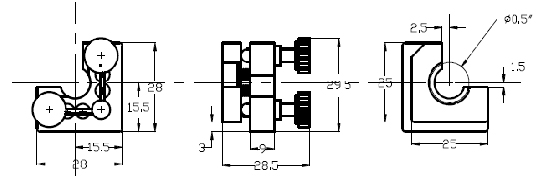

drawing MNI-HS
